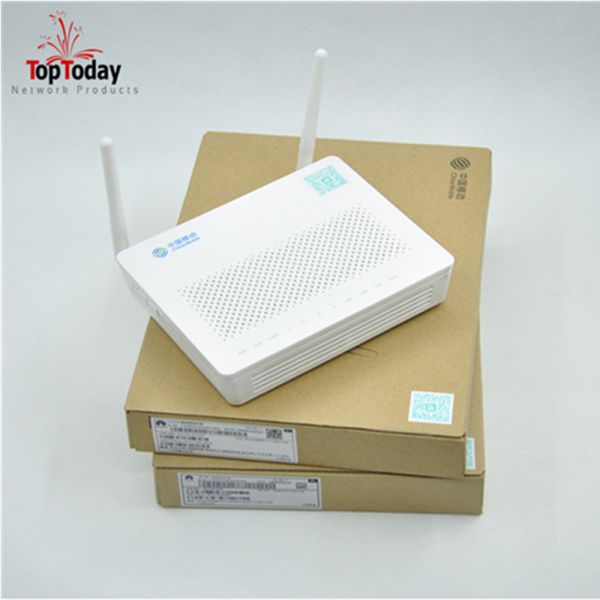

Huawei HS8545M HG8546M Modem 1GE 3FE Wifi GPON ONT ONU

Product Categories
Shenzhen Toptoday Network Co., Ltd.
Contact Now

Huawei HS8545M HG8546M Modem 1GE 3FE Wifi GPON ONT ONU

Place of Origin : China, Guangdong, China (Mainland)

Brand Name : huawei

Model Number : HS8545M

MOQ : Negotiable

Price : Negotiable

Product name : HS8545M

Color : White

Power adapte : UK, US, EU, AU etc

XPON : GPON

Selling Units : Single item

Single package size  : 35X5X15 cm

Single gross weight : 0.500 kg

Package Type : new in the huawei box

Contact Now

The HS8545M5, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology,ultra-broadband access is provided for home and SOHO users. The HS8545M5 provides one POTS port, one GE and three FE auto-adapting Ethernet ports and one Wi-Fi port. The HS8545M5 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HS8545M5 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Technical items Descriptions
Fiber port

1 GPON interface, 1GE+3FE+1POT+USB+WIFI,SC single-mode,

or 1 GPON interface, 4FE+1POT+USB+WIFI,SC single-mode,

Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/UPC
RX sensitivity <-27dBm (1490nm)
WLAN IEEE802.11b/g/n,2*2 MIMO, 2*External antenna,WPS,WiFi Multi Media
LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
Throughput Downstream 950Mbps,Upstream 930Mbps
ONT Detection and Isolation of Active/Passive Hooligans YES
DC power Adapter input: 100-240 V AC, 50 - 60 Hz ; Adapter output: 11 – 14 V DC, 1 A
Button Reset, power
Power ≤8W
Operation Working temperature: -0-+40℃ working humidity:5-95%(non-condensation)
Dimension 180*140*30mm(length*width*height)
Net weight ≤0.8Kg
